Light Duty Swing Gate - The Goldengate

Request a quote below or call 1300 76 44 77

each / ex GST
  • Build your gate below & request a quote
  • Our light duty swing gate with a leaf constructed from 115mm x 42mm oval rail
  • Swing gate is supplied with 2 latch posts for locking
  • Galvanised steel construction, powder coat finish
  • Custom colours & configurations manufactured on request
  • Locking options to suit
read more read less
SKU:
GATE02
Availability:
Usually ship in 15-20 working days

The Goldengate is a light-duty swing gate for securing car parks, laneways, private property and other restricted areas. Built in pre-galvanised steel and finished in safety yellow powder coat as standard, it provides a visible access-control barrier for sites that need controlled entry.

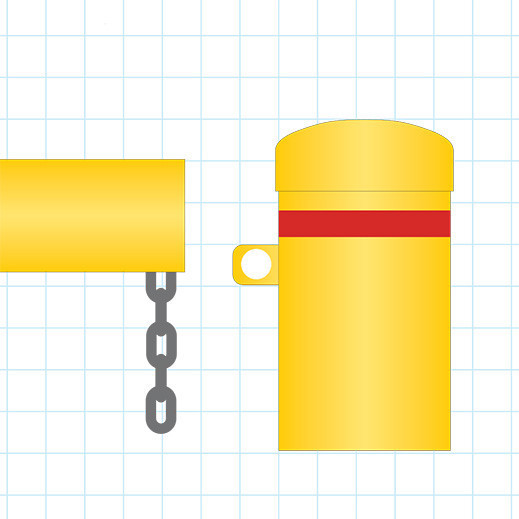

The gate is supplied with two latch posts: one for padlocking the gate in the closed position and another for padlocking it open. Latch posts are manufactured from 90 mm diameter steel pipe. Depending on gate length, the hinge post is constructed from either 140 mm or 165 mm diameter steel pipe.

The Goldengate provides clear openings up to 6.2 metres. For openings greater than 6.2 metres, a pair of swing gates meeting in the middle is recommended. Gate leaf construction uses 115 mm x 42 mm oval steel, with a 1,000 mm gate height shown.

Choose from bolt-down, concrete in-ground, or bolt-down mounting with a rag bolt cage. Other colour and design options are available on request, along with site measurement and installation services.

  • Light-duty swing gate for restricted access
  • Pre-galvanised steel construction
  • Safety yellow powder coat as standard
  • Two latch posts for open and closed padlocking
  • Bolt-down, in-ground or rag bolt cage mounting
  • Clear openings up to 6.2 metres
  • Site measure and installation service available
